Hold-Down Pipe Clamp

Hardware>Hold-Down Pipe Clamps

Hold-Down Pipe Clamp

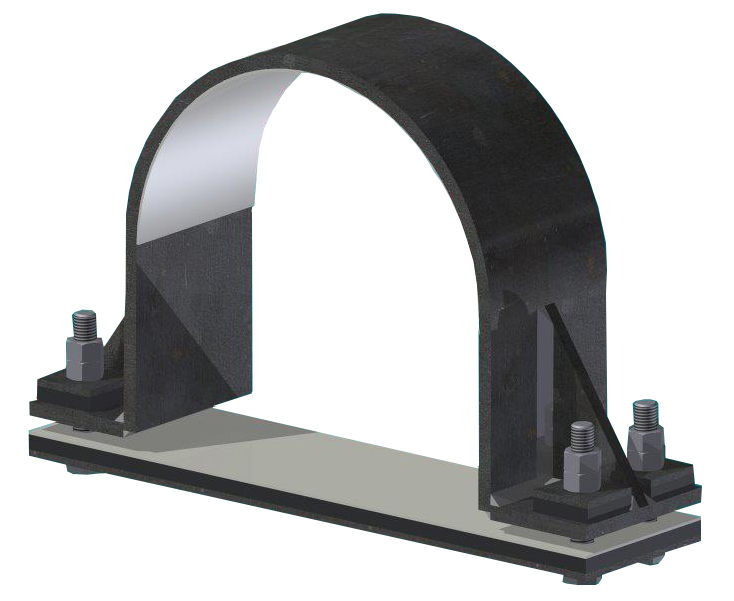

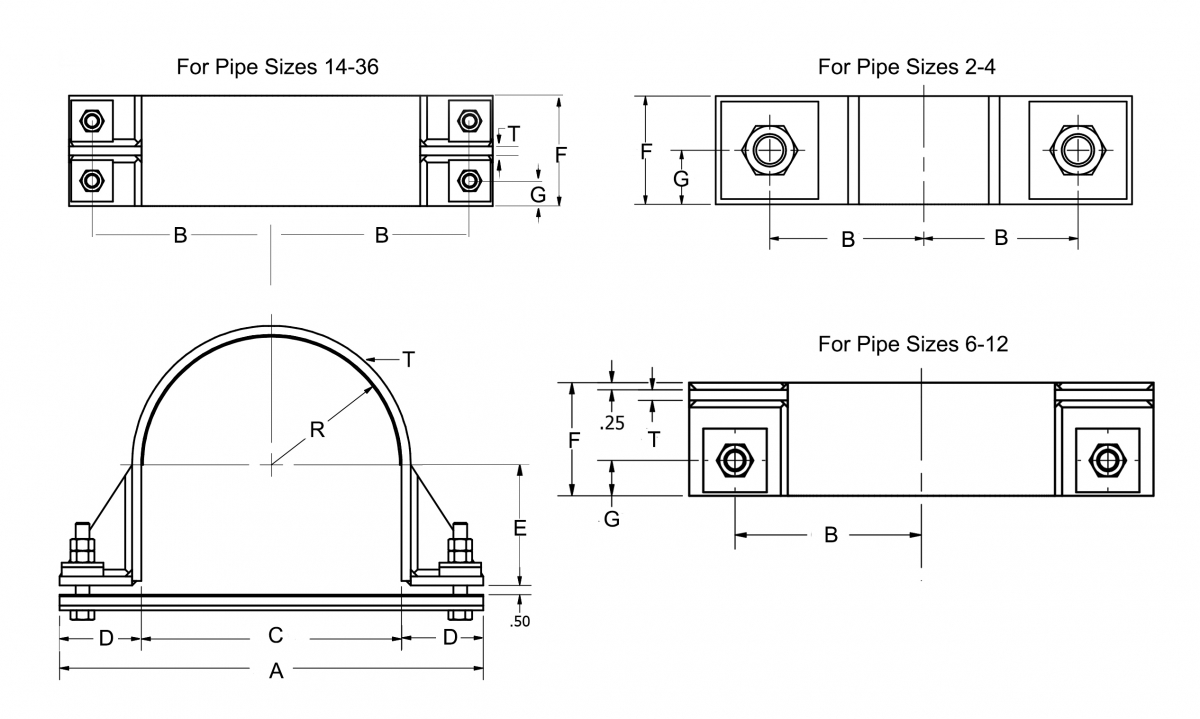

Hold Down Pipe Clamp              Hold Down Clamp Drawing

Size Range: Custom Sizes Available
Material: Carbon Steel
Finish: Black, Galvanized, or coated to customer specifications
Applications: Utilized to anchor a pipe to a flat surface to prevent lateral or longitudinal movement while allowing for movement in the axial direction. The base and radius of the pipe clamp are lined with slide plates to allow for the movement.
Maximum Temperature: 400°F (204°C)
Ordering: Specify pipe size, name and finish.

PIPE SIZE

A

B

C

D

E

F

G

R

T

2

9 5/8

3 9/16

2 1/2

3 9/16

3/4

2 1/2

1 1/4

1 1/4

1/4

3

10 3/4

4 1/8

3 5/8

3 9/16

1 5/16

2 1/2

1 1/4

1 13/16

1/4

4

11 3/4

4 5/8

4 5/8

3 9/16

1 13/16

2 1/2

1 1/4

2 5/16

1/4

6

14 1/2

6

6 3/4

3 7/8

2 7/8

4

1 1/4

3 3/8

3/8

8

16 1/2

6 5/8

8 3/4

3 7/8

3 7/8

4

1 1/4

4 3/8

3/8

10

18 5/8

8 1/16

10 7/8

3 7/8

4 15/16

4

1 1/4

5 7/16

3/8

12

21 3/4

9 5/8

12 7/8

4 7/16

5 15/16

4

1 1/4

6 7/16

1/2

14

23

10 1/4

14 1/8

4 7/16

6 9/16

6

1 3/8

7 1/16

1/2

16

25

11 1/4

16 1/8

4 7/16

7 9/16

6

1 3/8

8 1/16

1/2

18

27

12 1/4

18 1/8

4 7/16

8 9/16

6

1 3/8

9 1/16

1/2

20

29

13 1/4

20 1/8

4 7/16

9 9/16

6

1 3/8

10 1/16

1/2

24

33

15 1/4

24 1/8

4 7/16

11 9/16

6

1 3/8

12 1/16

1/2

30

39

18 1/4

30 1/8

4 7/16

14 9/16

6

1 3/8

15 1/16

1/2

36

45

21 1/4

36 1/8

4 7/16

17 9/16

6

1 3/8

18 1/16

1/2
