Vibration Control & Sway Braces

Overview

Applications

Sway braces are used for controlling vibration, absorbing shock, leading/guiding/restraining the movement of pipe resulting from thermal expansion and bracing a pipe line against sway.

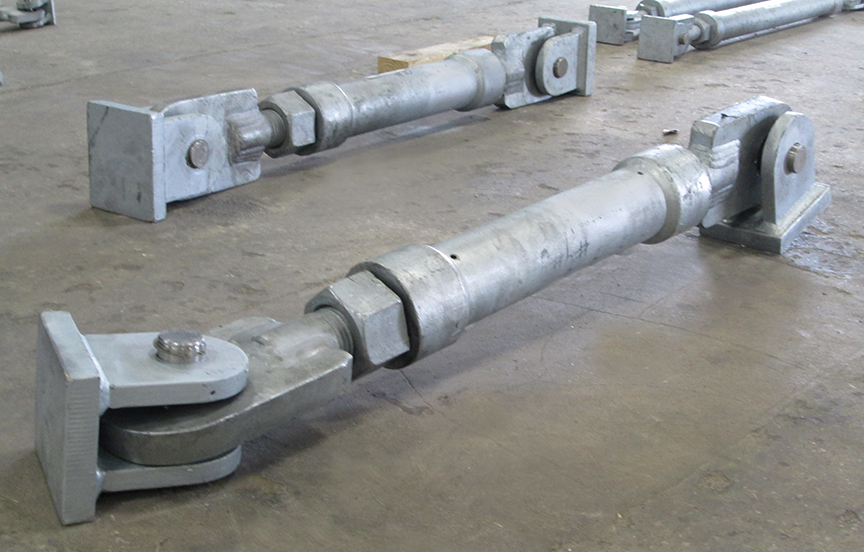

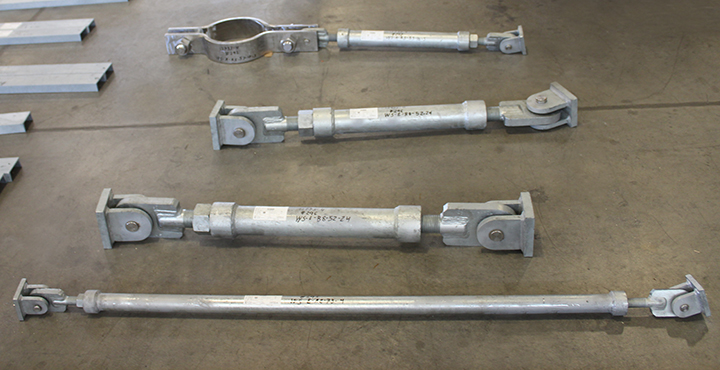

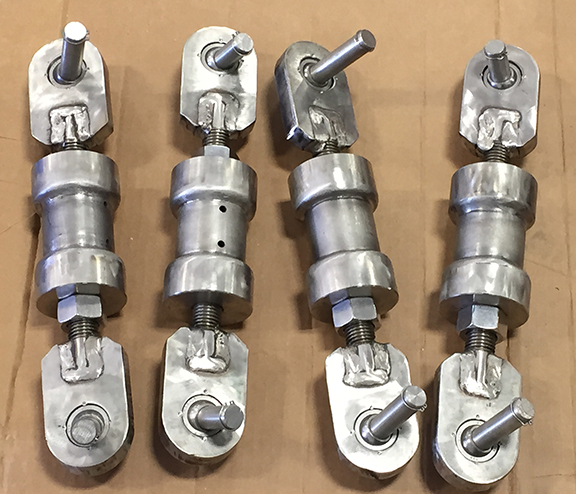

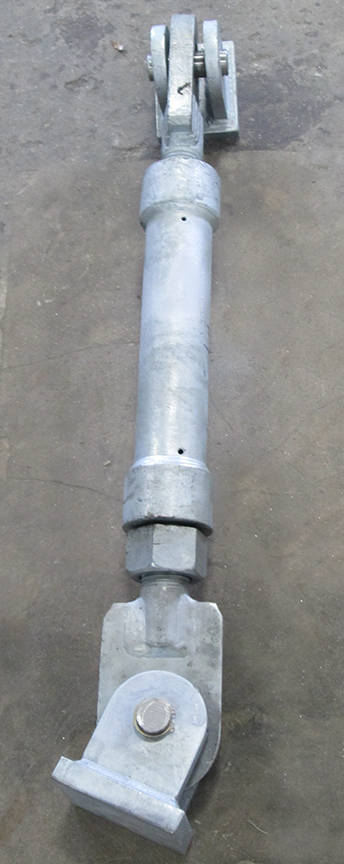

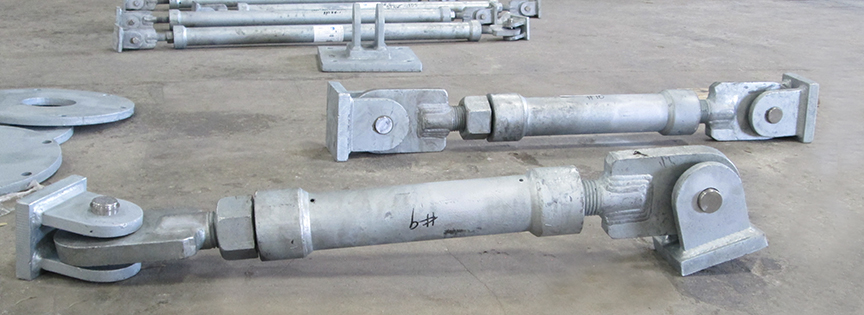

Sway struts are used to restrain movement of piping while allowing for movement in the other two directions.


Sway Strut Assembly	Mini Sway Strut Assembly	Sway Brace

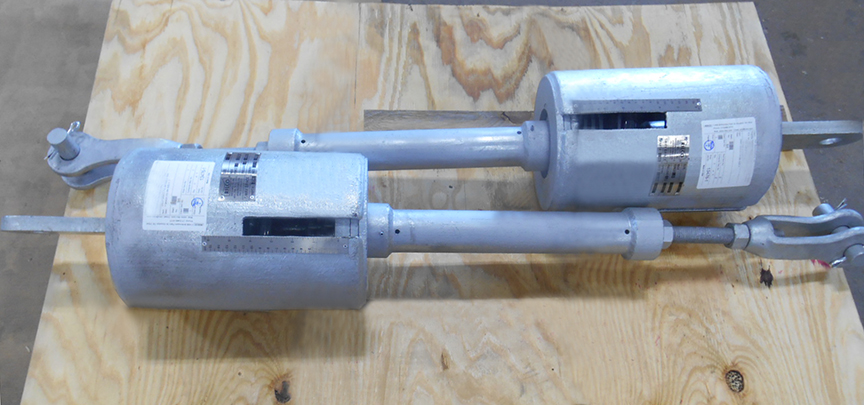

Sway Brace Features

Vibration is opposed with an instantaneous counter force bringing the pipe back to normal position
A single pre-loaded spring provides two-way action
One spring valve saves space and simplifies design
Spring has 3” travel in either direction
Accurate neutral adjustment assured
Fulfills the requirements of the ASME code for pressure piping as to fabrication details and materials
Complies with Manufacturers Standardization Society SP-69 (Type 50)
